Touch Screen

Elegantly designed colour Touch Screen which runs the eDIN+ App Control software.

Key features

• Easy to use Touch Screen.
• 7" colour display (1024 x 600 resolution).
• Optional black or white finish options.
• Supplied with flush mount back box.
• Power supply - 230V to DC adaptor (included).
• Connects to eDIN+ system by wired Ethernet cable.
• Pre-installed eDIN+ App Control software.
• Automatic set up - extracts information from the connected eDIN+ system.
• Simple wiring with POE support (optional).
• Complies with Low Voltage Directives (CE).
• 2 year warranty.

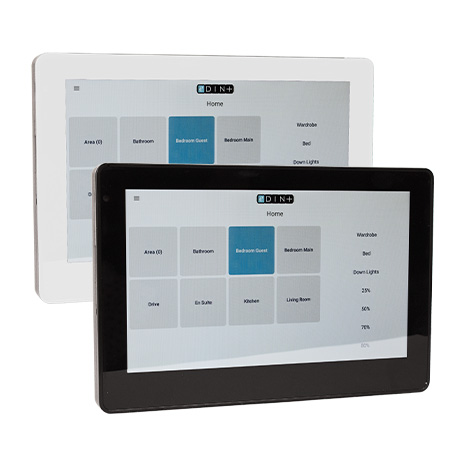

The DIN-TS-07 is an elegant colour Touch Screen designed to run the eDIN+ Application Software for simple control of a lighting system across multiple areas.

The Touch Screen connects to the eDIN+ system through a network connection, either as a standalone system or part of a building management network. Once a system is programmed the Touch Screen simply extracts the configuration from the Network Processor and auto-configures to provide control of areas as defined in the programming.

Systems can be set up with multiple users to allow different levels of access for local or global system management. Depending on the level of access granted users can select and adjust scenes without needing to delve further into system programming.
