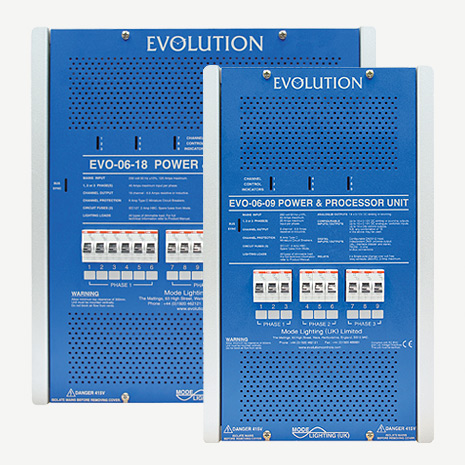

Evolution Power Packs

Behind the scenes of every Evolution installation are the Power and Processor Units. These are both dimmer power “brawn” and control “brain”, in a uniquely small enclosure.

Key features

• Twelve channels of 10 amps resistive or inductive loads, user selectable for dimming/switching/1-10v operation.
• Fully configurable control operation.
• Multi-function dsi, dmx, m-bus, dali0-10 volt and contact operation.
• Astronomical time clock built in.
• Intelligent self monitoring power supply.
• Self program on installation facility for multi-unit applications.
• Factory set default operation for quick installation / testing.
• Circuit protection individual 10 amp type c mcb for each channel (2 per phase).
• Emergency outputs fixed live mcb protected outputs for maintained emergency supplies.
• Supply input 200-250 volt 50-60 hz. 40amp maximum. (110-120 volt option available).
• Complies with EC EMC and low voltage directives (CE).
• Mode products are guaranteed for two years.

With a variety of power and circuit configurations and the ability to control mains dimmed, switched, 1-10v, DSI and DMX lighting with RS232 Integration as standard, Evolution gives feature enabled platform from which to develop lighting control system designs. DALI control and Web interfaces are available to extend the system capabilities bringing all lighting and integration formats within the realms of an Evolution System.
