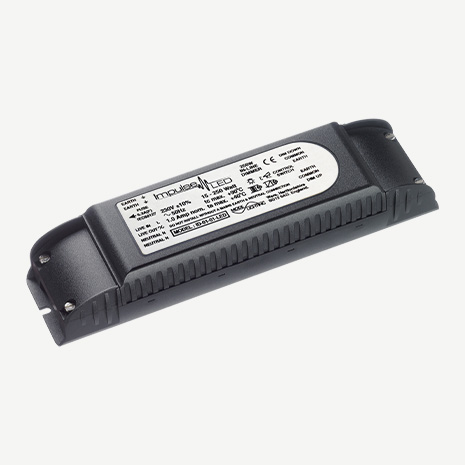

ID-01-01 LED

Impulse LED is an LED friendly version of our popular retrofit Impulse dimmer module. Impulse dimmers can be operated by any momentary or centre retractive type switch. A single switch can be used to provide On, Off, Raise, Lower control.

Key features

• 250W In-Line Dimmer
• Set both minimum and maximum light levels
• Suitable for Leading Edge Dimmable LED loads
• Hard-fired Dimming, Neutral required
• Low voltage switch plate wiring
• Controlled by any momentary switch
• Conforms to EC EMC, LV and RoHS standards
• On, Off, Dim Up, Dim Down functions
• Multi-position dimming control
• Multi-gang switch plate capabilities
• Fully isolated switch plate input
• Fully protected fused output
• Mode products are guaranteed for two years

A centre retractive switch can be used for On/Raise and Off/Lower control. The Impulse LED can also be used for multi-position, multi-gang dimming control and can be programmed to set minimum and maximum light levels which provides the ability to fine tune the dimming range to suit the wide variety of LED lamps available.

Also available in the Impulse range are a 500W (ID-02-01) and a 1000W (ID-04-01) unit to reliably control traditional resistive or inductive dimmable loads. A 1000W 1-10V version (ID-00-01) is also available for switching and 1-10V dimming applications.
