Recommended cable for connecting Setsquare Sensors to the LCM, DDC or POD units:-
Compatible connection of Sensors:
SET-PDOCH, SET-DOL, SET-ALD5 and the SET-SLM
SET-D4SC100-MR-7-W
Cable for connecting Sensors to LCM, DDC or POD units

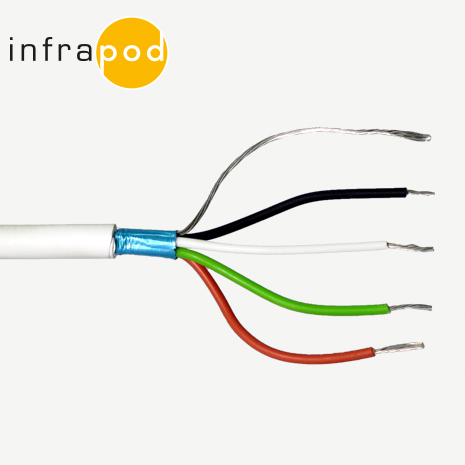

4-Core Stranded Cable
Key features
• 4-Core stranded tinned copper (7 x 0.2 mm² per core)
• An overall aluminium foil shielded 440V RMS.
• Inner shield drain wire stranded tinned copper (7 x 0.2 mm²)
• Core colour code- Red, Black, Green, White.
• White LSHF (Low Smoke Halogen Free) outer sheath.
• Overall nominal diameter- 4.1mm.
• Mains containment rated, suitable to run alongside 600v.
• Defence standard to 61-12 Part 4.
• 100m reel.
• Mode Lighting products are guaranteed for two years.
