Load Adapter


Key features

• Separate IN/OUT connections for easy installation.
• Terminal Clamps and Covers for remote inline installation.
• 10A maximum rated connected load for through connections (derate for LED loads).
• UL94-V0 flame retardant moulded enclosure.
• Complies with EC EMC and Low Voltage Directives (CE).
• 2 year warranty.

When using traditional phase-cut dimming technology with dedicated or retrofit LED solutions the performance of the lamps can have a dramatic impact on the dimming stability.

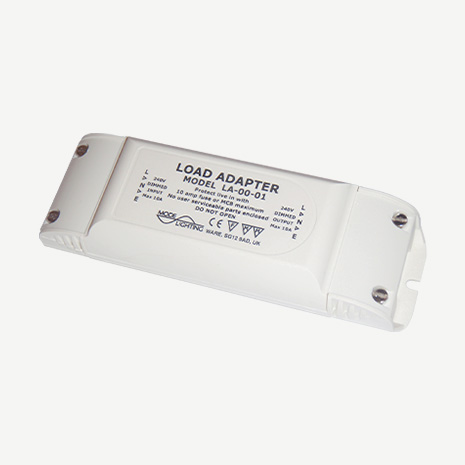

The LA-00-01 Load Adapter has been designed to improve the operation of circuits to aid the use of retrofit LED lighting in legacy installations.

Designed to stabilise lightly loaded dimming or switching circuits using LED or other energy efficient light sources. The Load Adapter is able to present itself as a traditional load to the dimmer whilst only consuming a small amount of power during operation.
