4 Port M-BUS Splitter Module

Key features

• Four isolated M-BUS outputs.
• Enables star-wiring of M-BUS devices.
• Powered from local M-BUS supply.
• Optional Booster Power Supply available.
• Connection via M-BUS to other eDIN+ system devices, Multi Sensors and Control Plates.
• Compact 9M width DIN rail mounting module.
• 2 year warranty.

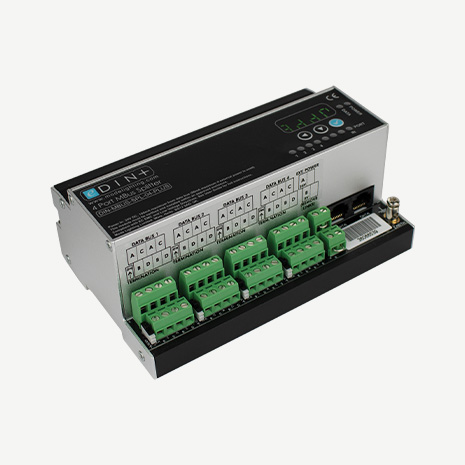

The M-BUS Splitter Module is a compact DIN rail mounted unit with four isolated M-BUS outputs.

The unit is designed to allow systems to be wired in a star-wiring formation with each output capable of wiring in two directions with multiple devices on each output.

In this format the wiring of devices can be split into a total of eight separate cable routes and multiple splitters can be used to expand star-wiring further as required.
